Plain or Twill Weave

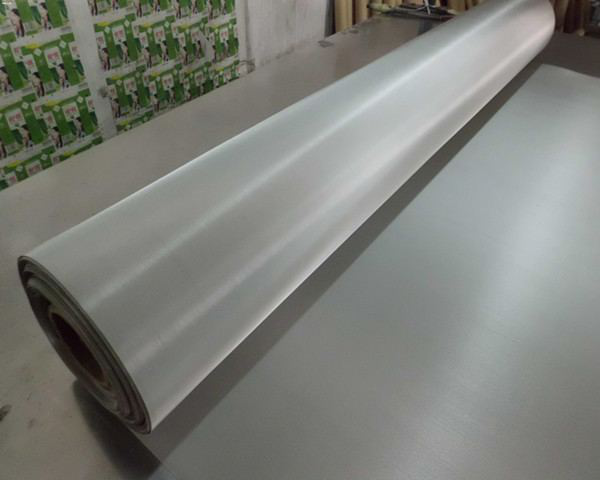

Stainless Steel Wire Cloth
Quick Details:
Usage:Filters ,sieve,chemical industry, mine industry, paper-making , etc
Material: SS 201,202,304,304L, 316,316L, 321, 430,ect
MOQ: 1 roll
Woven style: Plain and Twill Weave
Mesh :1-635mesh
Diameter: 0.0008″-0.08"
Open Area: 25-84.6
Weight (LB) /100 Square Foot:2.53-41.1
Roll Width: Max 240″
Roll Length: Max 2000′
Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case
Delivery Time: 5 days for stock material
DOWNLOADINQUIRY
DETAIL INFORMATION
Stainless Steel Plain & Twill Weave Wire Mesh
Mesh manufactures stainless steel square hole wire mesh depending on the client’s specification(s). Two types of wire mesh include – Plain Weave Wire Mesh and Twill Weave Wire Mesh.
Stainless Steel Wire Mesh – Plain Weave
The most common and simplest of all weaves, the Stainless Steel plain weave, is composed of weft wire warped alternately above and below creating a wire mesh. The plain weave is the simplest and the most economical, uses of which include filtration, sifting and for safety equipment. With apertures from 10.7mm to 0.05mm, the diameter is almost the same for both the warp and the weave.
Stainless Steel Wire Mesh – Twill Weave
For heavier needs, the twill weave is recommended. The shute wire is passed above and under two warp wires ensuring that the weave is sturdier as this produces a stronger and more durable wire mesh. The warp and weft have the same diameters thus creating a close diagonal pattern. This type of pattern is mostly used for filtration.
Uses of Plain and Twill Wire Mesh:
Sizing
Separation and Filtration
Sifting of particles
In safety and equipment protection
Applications:
• Aerospace
• Automotive
• Construction
• Oil and Gas
manufactures the highest material grade stainless steel wire mesh in the industry today. With ISO 9001:2008 certified, our products comply with the minimum standard of ASTM E2016. Our stocks of 304 and 306 grade vwoven wire cloth products are available and ready for shipment.
Stainless Steel Plain and Twill Weave Wire Mesh Specification
Dutch Weave Stainless Steel Wire Mesh
Quick Details:
Usage:Filters ,sieve,chemical industry, mine industry, paper-making , etc
Material: SS 201,202,304,304L, 316,316L, 321, 430,ect
MOQ: 1 roll
Woven style: Plain and Twill Dutch Weave
Mesh :8×85-500x3200mesh
Diameter: 0.014”x0.0126”-0.0015”x 0.0010’
Absolute Filtration Finess µm: 318-340 to 8-9
Nominal Filtration Finess µm: 250-255 to 2-3
Roll Width: Max 240″
Roll Length: Max 2000′
Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case
Delivery Time: 5 days for stock material
DOWNLOADINQUIRY
DETAIL INFORMATION
Dutch weave wire mesh also known as “Hollander weave mesh” is ideal for high-pressure filtration as this is stronger and more durable than plain weave wire meshes. The Dutch uses larger diameters and each weave pattern is made up of a limited number of warp wires, which are interwoven with weft wires creating a cloth that can withstand strong pressure. This type of mesh is usually used for liquid filtration for petrochemical, aerospace, pharmaceutical and even on wastewater treatment facilities. Plain and Twill are two types of Dutch weave wire mesh.
Stainless Steel Plain Dutch Weave Wire Mesh
The stainless plain Dutch weave wire mesh is manufactured by using small and big wires together. Small wires, often of micron size, are woven with a bigger warp wire. The small wires are woven as tightly as possible to ensure that the mesh is taut making it ideal for filtration especially when it comes to separating liquid matter from solid materials. When viewed diagonally, one can see a triangular pattern developed due to the uneven and winding weaving motion.
Stainless Steel Plain Dutch Weave Wire Mesh
Stainless Steel Twill Dutch Weave Wire Mesh
The Dutch and Twill weave makes use of both the Plain Dutch and Twill weaving patterns to create a finer mesh cloth for filtration. The shute wires pass over and under two warp wires via twilled weaving resulting to two layers of weft wires. The tight weaving makes it the ideal mesh for filtration of gas and other liquid matter.
Stainless Steel Twill Dutch Weave Wire Mesh Specification
Hightop Metal Mesh provide a full range of conversion services. These include slitting and shearing, annealing and stretching. Hightop Metal Mesh can also provide information on the filtration performance of the mesh to ensure it meets product requirements. Hightop Metal Mesh’s plain dutch and twill dutch weave wire mesh products are in compliance with ISO 9001:2008 and ASTM standards. Hightop Metal Mesh will also manufacture to ISO, DIN and client requirements. Our expert is available to help you select or design the most effective wire cloth product for your application. For a quick quote on our stainless steel plain dutch and twill dutch weave wire cloth capabilities, please kindly contact us.
• We offer a full range of conversion services including: slitting, shearing, annealing and stretching.
• Request for filtration performances are also available upon request.
• Hebei Hightop Metal Mesh Plain Dutch and Twill Dutch Weave wire mesh products are manufactured in compliance with the ISO 9001:2008 and meet the ASTM standard.
• We also accept requests for ISO, DIN and other client specifications. Our expert sales agents are available to help with design selections and other application requirements.
• For a quick and free quote on Stainless Steel Plain Dutch and Twill D
Stainless steel wire mesh also can be used in filter element like epoxy coated wire mesh .
